| MLA PART CODE | WW40C |
|---|---|

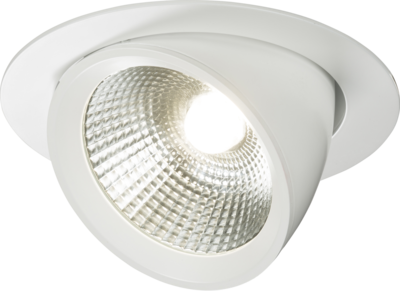

| DESCRIPTION | 230V 40W Round LED Recessed Adjustable Downlight |
| NET WEIGHT (KG) | 1.272 |
| FINISH | White |
| DIFFUSER | Clear |
| DIMENSIONS (MM) | Diameter - 190 Projection - 87 Recessed Depth - 122 Minimum Void - 172 |
| CUT-OUT (MM) | Cut-out Diameter - 160 |
| TILT (DEGREES) | 40 |
| ROTATION (DEGREES) | 350 |
| CONSTRUCTION | Construction - Aluminium |
| CLASS | II |
| IP RATING | IP40 (IP20 from above) |
| WATTAGE (W) | 40 |
| LAMP TECHNOLOGY | LED |
| LAMP INCLUDED | Yes |
| LUMENS (LM) | 4050 |
| LUMENS LIGHT SOURCE ONLY (LM) | 4050 |
| LUMEN TOLERANCE | 5% |
| EFFICACY (LM/W) | 102.97 |
| CIRCUIT WATTAGE (W) | 38.79 |
| CCT | 4000K |
| LIGHT COLOUR | Cool White |
| CRI | >80 |
| SDCM | <6 |
| RUNNING CURRENT (A) | 0.17 |
| DISPLACEMENT FACTOR | >0.9 |
| SVM | 0.85 |
| PST-LM | 0.1 |
| BEAM ANGLE (DEGREES) | 30 |
| LIFE SPAN (HRS) | 30,000 |
| L70B50 LIFESPAN (HRS) | 54,000 |
| DIMMABLE | No |
| IC RATED | No |
| OPERATING TEMPERATURE | 35°C |
| INPUT VOLTAGE | 230V 50Hz |
| CABLE LENGTH (M) | 0.4 |
| CABLE TYPE | 2-core 0.75mm H03VVH2-F |
| DRIVER | DRIVER TYPE - Constant Current MAX. OUTPUT - 40W OUTPUT VOLTAGE - 30 - 42V OUTPUT CURRENT - 950mA POWER FACTOR - >0.9 EFFICIENCY FULL LOAD - 88.7 ISOLATION - SELV AMBIENT TEMPERATURE (Ta) - 40°C CASE TEMPERATURE (Tc) - 85°C |
| WARRANTY | 3year(s) |
| MANUFACTURED IN ACCORDANCE WITH | BS EN 60598 |
| ORIGIN OF MANUFACTURE | China |
| DECLARATION OF CONFORMITY (HELD ON FILE) | Yes |
| EAN | 5055832952886 |
