| MLA PART CODE | SN8470B |
|---|---|

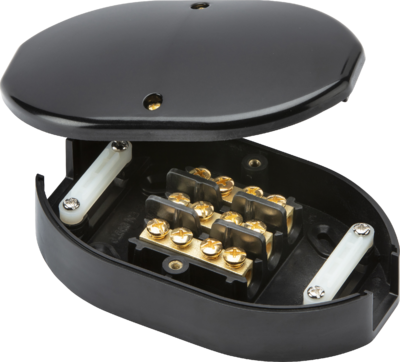

| DESCRIPTION | 60A Junction Box 3-Terminal - brown |
| NET WEIGHT (KG) | 0.311 |
| FINISH | Brown |
| DIMENSIONS (MM) | Length - 147 Width - 90 Projection - 40 |
| CONSTRUCTION | Construction - Thermoset resin |
| IP RATING | IP20 |
| INPUT VOLTAGE | 230V 50Hz |
| LOAD/MAX. LOAD | 60A |
| TERMINAL CAPACITY | 25mm² wire capacity |
| FUNCTION | 3 Terminal |
| WARRANTY | 25year(s) |
| MANUFACTURED IN ACCORDANCE WITH | BS EN 60670 |
| ORIGIN OF MANUFACTURE | China |
| DECLARATION OF CONFORMITY (HELD ON FILE) | Yes |
| EAN | 5055832955870 |
