| MLA PART CODE | CU8332W |
|---|---|

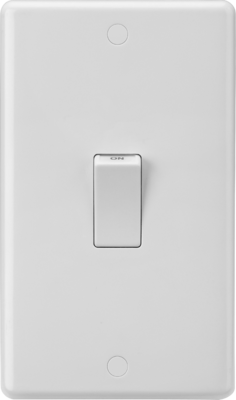

| DESCRIPTION | 45A DP Switch (2G size) - White Rocker |
| NET WEIGHT (KG) | 0.157 |
| FINISH | White |
| DIMENSIONS (MM) | Height - 146 Width - 86 Projection - 7 |
| MINIMUM MOUNTING BOX DEPTH | 47mm |
| CONSTRUCTION | Construction - Thermoset resin |
| IP RATING | IP20 |
| INPUT VOLTAGE | 230V 50Hz |
| SWITCH TYPE | Double Pole |
| EARTH TERMINAL | Yes |
| LOAD/MAX. LOAD | 45A |
| TERMINAL CAPACITY | 2 x 6.0mm² or 3 x 4.0mm² |
| ANTI-MICROBIAL PROPERTIES | 3rd Party Tested to ISO 22196:2011 |
| WARRANTY | 25year(s) |
| MANUFACTURED IN ACCORDANCE WITH | BS EN 60669-1 |
| ORIGIN OF MANUFACTURE | China |
| DECLARATION OF CONFORMITY (HELD ON FILE) | Yes |
| EAN | 5056270801828 |
