| MLA PART CODE | SN8333NW |
|---|---|

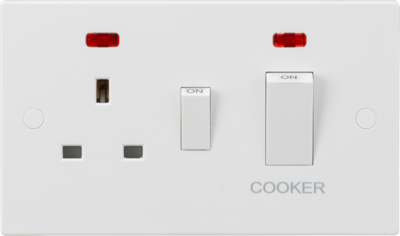

| DESCRIPTION | 45A DP Switch & 13A Socket with Neons - White Rockers |
| NET WEIGHT (KG) | 0.204 |
| FINISH | White |
| DIMENSIONS (MM) | Height - 86 Width - 146 Projection - 9 |
| MINIMUM MOUNTING BOX DEPTH | 47mm |
| CONSTRUCTION | Construction - Thermoset resin |
| IP RATING | IP20 |
| INPUT VOLTAGE | 230V 50Hz |
| SWITCH TYPE | Double Pole |
| EARTH TERMINAL | Yes |
| NEON INDICATOR | Yes |
| LOAD/MAX. LOAD | 45A / 13A |
| TERMINAL CAPACITY | 2 x 6.0mm² or 3 x 4.0mm² |
| ANTI-MICROBIAL PROPERTIES | 3rd Party Tested to ISO 22196:2011 |
| WARRANTY | 25year(s) |
| MANUFACTURED IN ACCORDANCE WITH | BS 4177, BS 1363-2 |
| ORIGIN OF MANUFACTURE | China |
| DECLARATION OF CONFORMITY (HELD ON FILE) | Yes |
| EAN | 5056270802092 |
