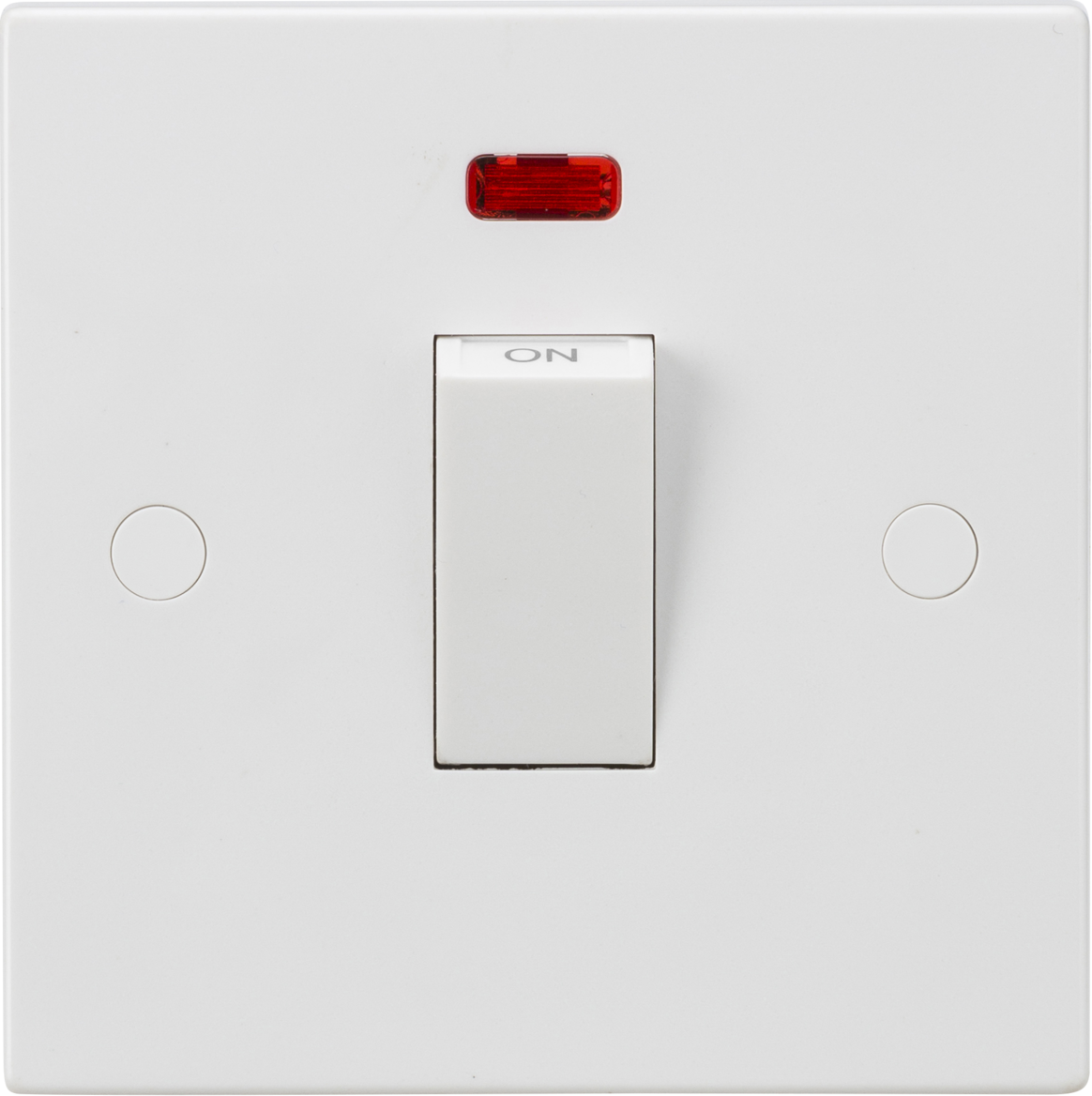

Hard wearing, all purpose Square Edge 9mm plate with anti-microbial properties
- 45A rated
- Double Pole
- With neon indicator
- Includes screw cap covers
- Certified to EN 60669-1
- Supplied in Knightsbridge rip top polybag with euro slot
| Unit Barcode | 5056270801972 |
|---|---|
| Inner Carton Quantity | 10 |
| Inner Carton Weight | 1.55 Kg |
| Inner Carton Length | 18.5 cm |
| Inner Carton Width | 16.5 cm |
| Inner Carton Height | 9.3 cm |
| Inner Carton Barcode | 5056270801989 |
| Outer Carton Quantity | 100 |
| Outer Carton Weight | 15.50 Kg |
| Outer Carton Length | 48.5 cm |
| Outer Carton Width | 19.5 cm |
| Outer Carton Height | 35 cm |
| Outer Carton Volume | 0.033100 m3 |
| Outer Carton Barcode | 5056270801996 |
| Height | 86 mm |
|---|---|
| Width | 86 mm |
| Projection | 9 mm |
| Min. Mounting Box Depth | 47mm |
| Construction | Thermoset resin |
|---|---|
| Finish | White |
| IP Rating | IP20 |
| Primary Voltage | 230V 50Hz |
| Earth Terminal | Yes |
|---|---|
| Neon Indicator | Yes |
| Anti-Microbial Properties | 3rd Party Tested to ISO 22196:2011 |
| Warranty | 25 |
|---|
| Line Drawing 1 |  |
|---|
| Commodity Code | 8536 5080 90 |
|---|
