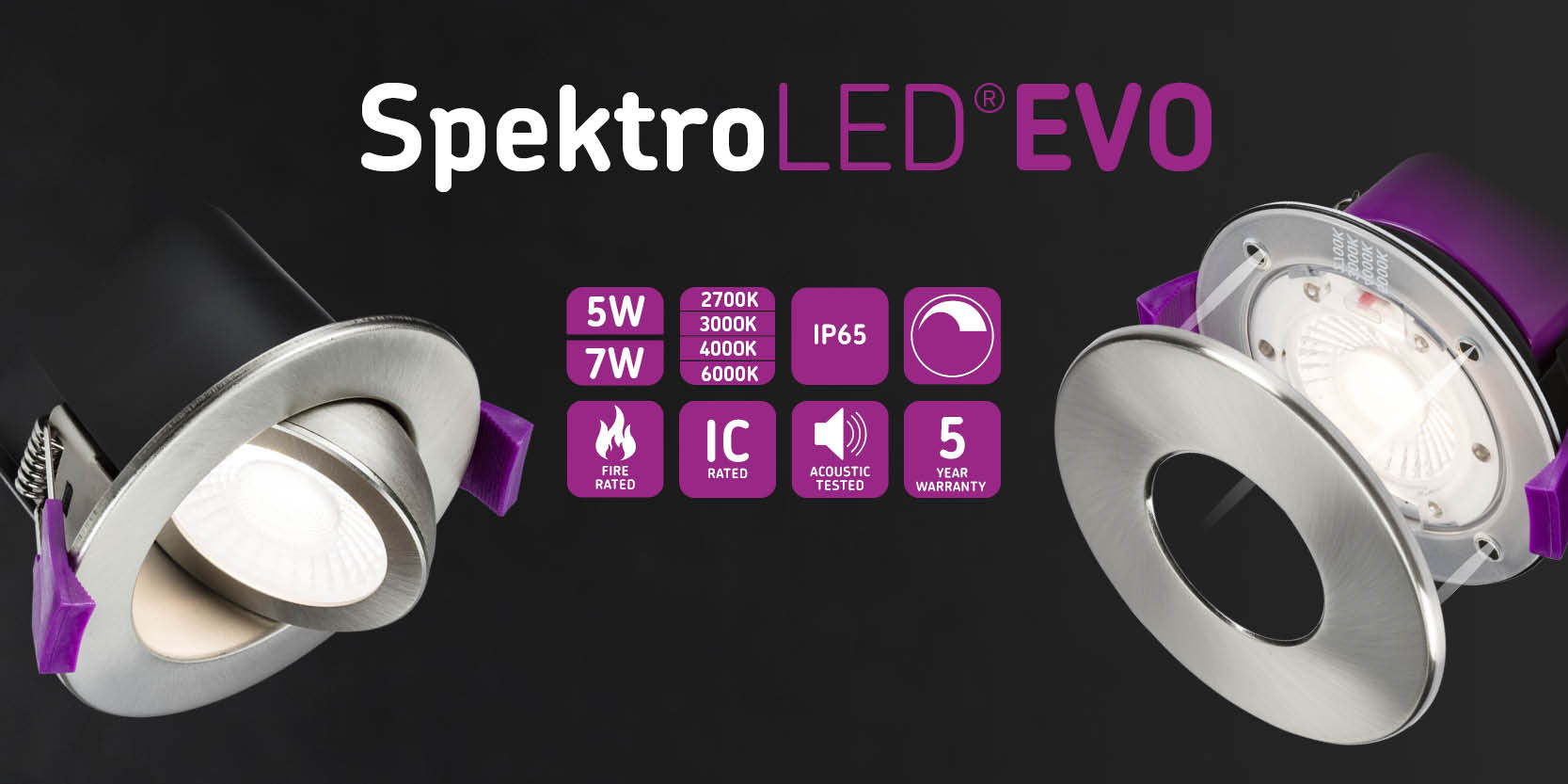

SPEKTROLED® The Perfect Fit
Designed with budget in mind and the end user at heart.
Boasting a 40-in-1 feature set consisting of 2 user-definable wattages and 4 CCT options with 5 easy to install bezel finishes, the SpektroLED® range is the perfect choice for cost effective and energy efficient lighting installations that demand versatility.
Available in both Fixed and Tilt option the SpektroLED® range allows for even greater customisation by providing further flexibility in adjustment.
SpektroLED® gives you complete control over the experience.
The 40-In-1 Solution
Available in both a fixed and tilt configuration, with 8 lighting outputs and 5 bezel finishes to choose from, the SpektroLED® range creates huge flexibility in choice and suitability for multiple domestic and commercial applications
Easy-Install
With push-fit screwless terminals, a loop-in / loop-out connector system, and detachable connector system for first and second fix installation
Low Profile
Low minimum void of just 42mm (on SpektroLED® Fixed) and 60mm (on SpektroLED® Tilt) enabling installation in tight ceiling spaces
5-Year Warranty
SpektroLED® is backed by a 5-year warranty as standard
Engineering Excellence
Due to the intelligently engineered male and female power connectors, the cables may be terminated and stored away until the décor is complete, with the downlight easily plugged in and fitted thereafter.
The luminare may be removed for maintenance by simply disconnecting it, thanks to same connector mechanism.
The SpektroLED® range is one of the most adaptable options on the market, with a 40-in-1 solution designed for the contractor and end user.
Complete Customisation

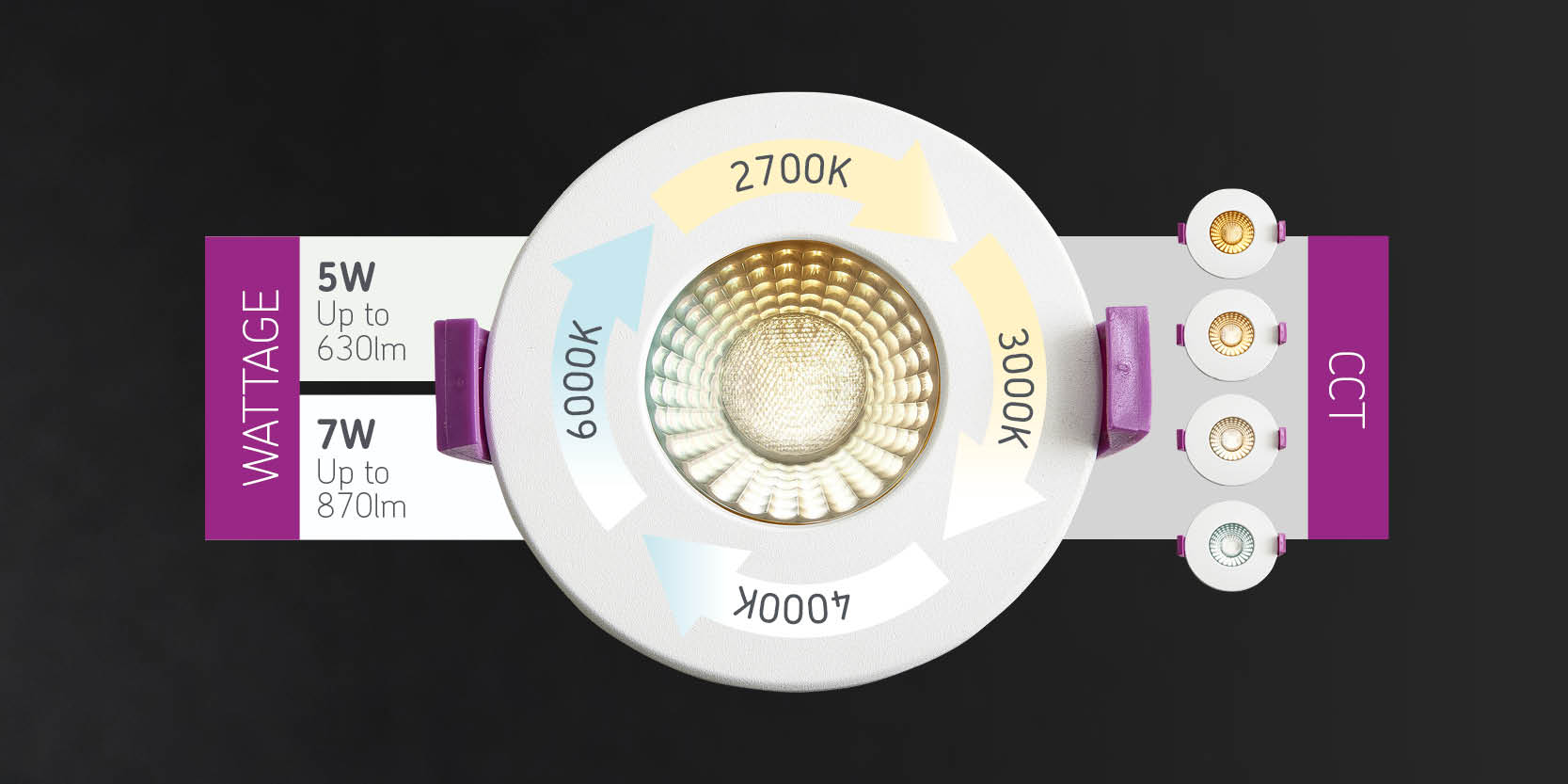

With the SpektroLED® range, Contractors can quickly alter the lighting output for their intended application by using the switches on the back of the fire-rated LED downlight.
Furthermore, the different bezel colours complement every style of interior design, making SpektroLED® Fixed and SpektroLED® Tilt the logical choice for ultimate customisation based on user demands, desires, and environments.
Uncompromising Quality

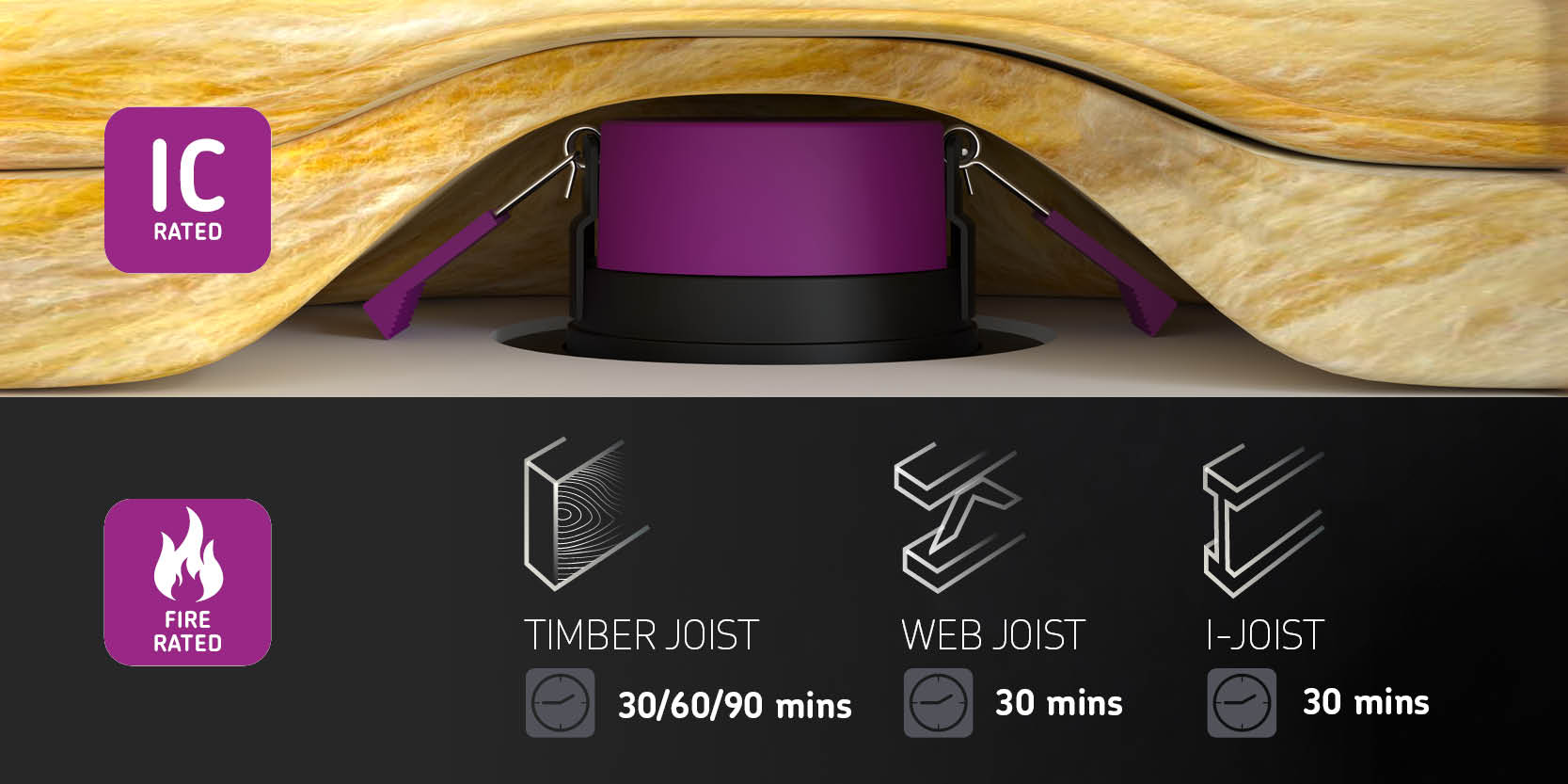

SpektroLED® Fixed is rated IP65 and SpektroLED® Tilt is rated IP20 for Ingress Protection. Both downlights are fully IC rated and have been fire-tested against timber, web and Staircraft i-joists.

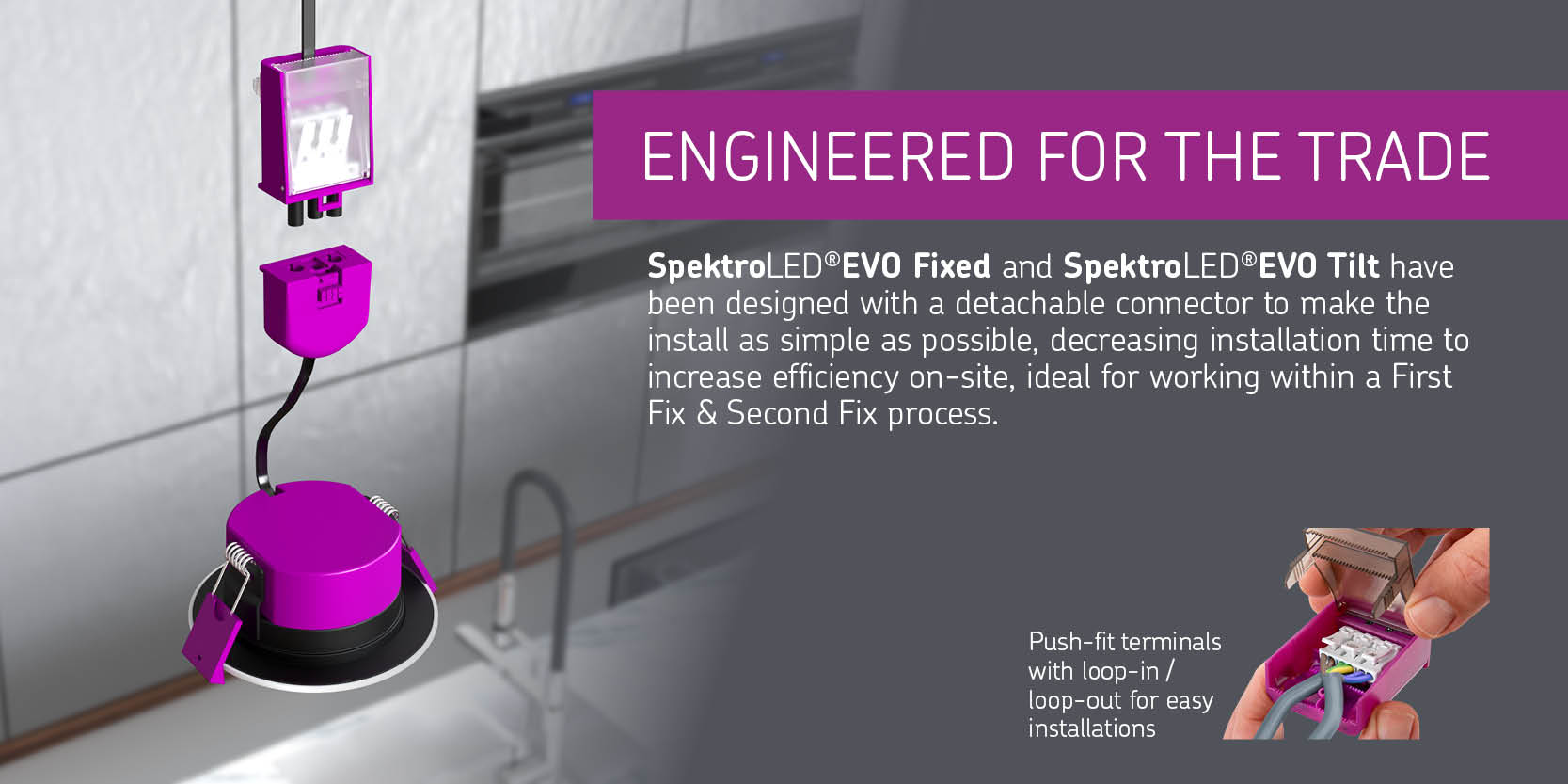

Designed For The Trade
SpektroLED® Fixed and SpektroLED® Tilt have been designed with a detachable connector to make the install as simple as possible, decreasing installation time to increase efficiency on-site.
Technical Specifications
| SPEKFCWA - Fixed | SPEKTCWA - Tilt | |
|---|---|---|
| Voltage | 230V | 230V |
| Wattage | 5W / 8W | 5W / 8W |
| Dimmable | Yes* | Yes* |
| CCT | 2700/3000/4000/6000K | 2700/3000/4000/6000K |
| Lumens | Up to 870lm | Up to 870lm |
| Beam angle | 60 ° | 60 ° |
| Tilt | – | 26 ° |
| Class | II | II |
| IP Rating | IP65 from below, IP20 from above | IP20 |
| Driver | Integral | Integral |
| Lamp Technology | LED | LED |
| Fire-rated (Timber) | Tested to 30/60/90 minutes | Tested to 30/60/90 minutes |
| Fire-rated (Web-joist) | Tested to 30 minutes | Tested to 30 minutes |
| Fire-rated (I-joist**) | Tested to 30 minutes | Tested to 30 minutes |
| IC Rated | Yes | Yes |
| Acoustic Tested | Yes | No |
| CRI | >85 | >85 |
| Warranty | 5 years | 5 years |
| Overall Diameter | 88.5mm | 88mm |
| Minimum Void | 40mm | 60mm |
| Cut-out Diameter | 66mm | 66mm |
* With most trailing-edge dimmers, please check compatibility before installation.
** Tested with Staircraft i-joists.
