Great for use in kitchen counter tops, desktops in office and boardrooms and hotel rooms. Whenever a discreet power solution is desired. This device has a secure clip that locks the unit upright when in use. You can also use the unit when it’s closed thanks to the innovative cable management cap and inverted socket positions.
This device also benefits from Knightsbridge FASTCHARGE USB sockets which can deliver a 0-50% charge in under 30 minutes with compatible devices.
FASTCHARGE is achieved by the intelligent switching of voltages between 5V to up to 12V to optimize and deliver the maximum input your device can handle. Your device decides how much power it’s going to draw down.
Features
- 3 x 13A sockets
- Back lit On/Off rocker switch
- Fitted with 2m cable and BS plug top for easy installation
- Aluminum casing with die-cast decorative metal cap and handle
- Require mounting board thickness: 10-50mm
- Cut out: Circular 90-92mm (allowing a minimum 25m clearance around the cut hole)
- Fully certified to the latest British Safety Standards
Benefits
- IP54 rating – unique waterproof design (when closed)
- Built in Dual USB FASTCHARGE A+C
- 5V DC 3A 15W / 12V DC 1.5A 18W QC/PD (5V DC 4.0A 20W Max shared)
WE RECOMMEND ONLY USING CERTIFIED USB CABLES FOR SAFETY, OPTIMUM PERFORMANCE AND TO ENSURE COMPATIBILITY
IMPORTANT: THE DEVICE CONTROLS THE POWER BEING DRAWN, NOT THE SOCKET MOST COMPATIBLE DEVICES WILL ONLY ACTIVATE FASTCHARGE BETWEEN 0-70% BATTERY POWER AFTER THIS IT WILL REVERT TO STANDARD CHARGING PARAMETERS TO PROTECT BATTERY
NB: USB-C PORT NOT COMPATIBLE WITH IPHONE15, IPHONE15 CHARGING ONLY SUPPORTED VIA WIRELESS PAD OR OVER USB-A PORT (IPHONE15 DOES NOT SUPPORT VOLTAGE SWITCHING FAST CHARGING)
Unit Barcode | 5056270812206 |
---|---|
Inner Carton Quantity | 1 |
Inner Carton Weight | 1.52 Kg |
Inner Carton Length | 51 cm |
Inner Carton Width | 13.5 cm |
Inner Carton Height | 14 cm |
Inner Carton Barcode | 5056270812206 |
Outer Carton Quantity | 10 |
Outer Carton Weight | 18 Kg |
Outer Carton Length | 71 cm |
Outer Carton Width | 53 cm |
Outer Carton Height | 30.5 cm |
Outer Carton Volume | 0.114800 m3 |
Outer Carton Barcode | 5056270812213 |
Diameter | 100 mm |
---|---|
Projection | 10 mm |
Minimum Void | 445 mm |
Cut-out Diameter | 90-92 mm |
Construction | Aluminium |
---|---|
Construction 2 | & polycarbonate |
Finish | Black Nickel |
IP Rating | IP54 |
Class | I |
Primary Voltage | 230V 50Hz |
Cable Length | 2 m |
Fastcharge | Yes |
---|---|
Neon Indicator | Yes |
Warranty | 2 |
---|

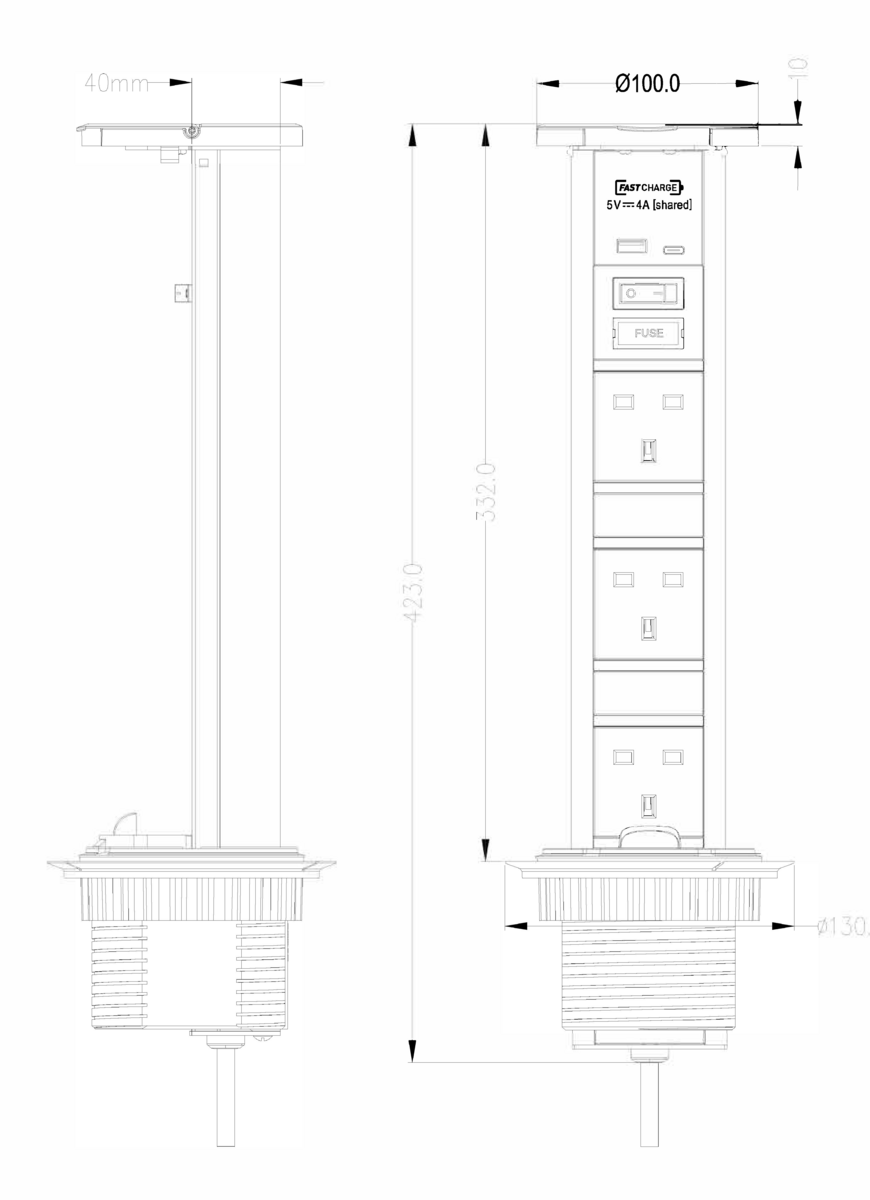

Line Drawing 1 | Download |
---|
Commodity Code | 8536 6990 85 |
---|
