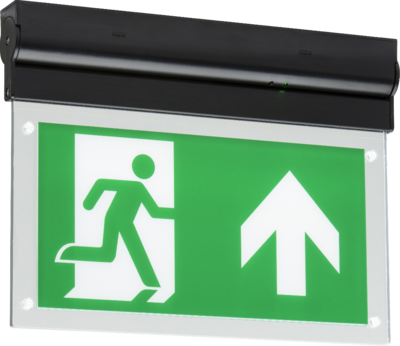

LED emergency exit sign, complete with Arrow Up legend. Fitting has an unique hanger and hinge system, supports a dual-mount wall or ceiling installation. Typically installed above doorways, fitting can be maintained or non-maintained use. Operating a minimal 3 hour illumination during loss of power, ensuring illuminated exit routes during evacuations.
- Suitable for wall and ceiling mounting with a unique hanger and hinge system
- Supplied as standard with Arrow Up legend
- Maintained or non-maintained (cannot be wired for switched-maintained use)
- LiFePO4 battery
- Ranges of legends available (sold separately)
| Unit Barcode | 5056270880854 |
|---|---|
| Inner Carton Quantity | 1 |
| Inner Carton Weight | 0.979 Kg |
| Inner Carton Length | 33.5 cm |
| Inner Carton Width | 4.5 cm |
| Inner Carton Height | 24.5 cm |
| Inner Carton Barcode | 5056270880854 |
| Outer Carton Quantity | 10 |
| Outer Carton Weight | 10.7 Kg |
| Outer Carton Length | 47 cm |
| Outer Carton Width | 35 cm |
| Outer Carton Height | 26.5 cm |
| Outer Carton Volume | 0.043600 m3 |
| Outer Carton Barcode | 5056270880878 |
| Length | 310 mm |
|---|---|
| Height | 230 mm |
| Width | 35 mm |
| Projection | 44 mm |
| Construction | Polycarbonate |
|---|---|
| Finish | White |
| IP Rating | IP20 |
| Class | II |
| Primary Voltage | 230V 50Hz |
| Emergency | Maintained / Non-maintained (not Switched) |
|---|
| Lamp Technology | SMD LED |
|---|---|
| Lamp Included | Yes |
| Dimmable | No |
| CCT | 6000 K |
|---|---|
| Light Colour | Daylight |
| Lumens | 90 lm |
| Lumens (Em. mode) | 48 lm |
| Wattage | 4 |
| Efficacy (Light source) | 25.04 lm/W |
| CRI | >80 |
| Photometric IES | EMEXITL.LDT |
| Photometric LDT | EMEXITL - EM mode.ldt |
| Warranty | 3 |
|---|---|
| Warranty Information | including battery |
| Line Drawing 1 |  |
|---|
| Commodity Code | 9405612090 |
|---|
