Modular design: Whether the project needs a standard batten, an emergency option or a microwave sensor, the range covers it all with the help of plug-in modules. Choose from various lengths and wattages to suit specific project requirements.

High Efficiency: The battens deliver up to 140 lm/W, providing bright illumination while minimizing energy consumption. This superior performance is achieved by utilizing the latest LED chip and driver technology.

Quick installation: The hinged tray mechanism ensures easy installation. Conduit entries, standard 600mm fixing points, and BESA compatibility ensure that the range will retrofit any installation and allow flexibility for new projects.

Optional modular microwave sensor, MODMWS
Optional modular emergency conversion kit, MODEMKIT
High efficiency
Rear and end conduit fixings
Standard 600mm centres and BESA box compatible
Hinged gear tray
Push-fit loop in-loop out terminal block
4000K, 4,600lm

Download

Unit Barcode	5056270852608
Inner Carton Quantity	1
Inner Carton Weight	1.8 Kg
Inner Carton Length	153 cm
Inner Carton Width	6.5 cm
Inner Carton Height	7.5 cm
Inner Carton Barcode	5056270852608
Outer Carton Quantity	8
Outer Carton Weight	15.00 Kg
Outer Carton Length	154.5 cm
Outer Carton Width	28.5 cm
Outer Carton Height	16.5 cm
Outer Carton Volume	0.072700 m³
Outer Carton Barcode	5056270851465

Length	1525 mm
Width	61 mm
Projection	70 mm

Construction	Pressed steel
Construction 2	& polycarbonate
Finish	White
IP Rating	IP20
Class	I
Primary Voltage	230V 50Hz

Diffuser	Opal

Lamp Technology	LED
Lamp Included	Yes
Dimmable	No
L70B50	100000
Energy Rating (Class) post 2021 SLR	D
Beam Angle	125

CCT	4000 K
Light Colour	Cool White
Lumens	4600 lm
Lumens (Light source only)	5100 lm
Wattage	33
Efficacy (Light source)	152.1 lm/W
CRI	>80

Driver Type	Constant Current

Warranty	5

Line Drawing 1	Download

Commodity Code	9405423990

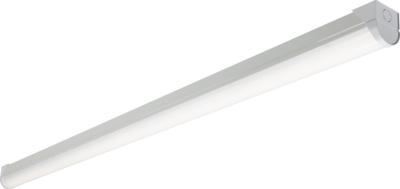

230V 5ft 33W Modular LED Batten - 4000K

BATM5
