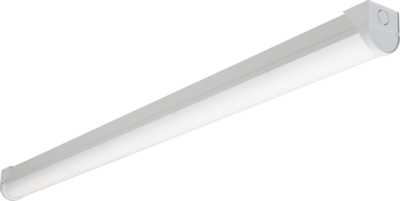

230V 4ft 31W Modular CCT and Wattage Adjustable Batten

BATMCW4

Modular design: Whether the project needs a standard batten, an emergency option or a microwave sensor, the range covers it all with the help of plug-in modules. Choose from various lengths and wattages to suit specific project requirements.

Versatility: Customize the colour temperature with popular CCT options of 3000K, 4000K, and 5700K. Adjust the wattage to 17W, 22W, 26W, or 31W. Mix and match to perfectly meet your project’s specific needs.

High Efficiency: The battens deliver up to 150 lm/W, providing bright illumination while minimizing energy consumption. This superior performance is achieved by utilizing the latest LED chip and Tridonic driver technology.

Quick installation: The hinged tray mechanism ensures easy installation. Conduit entries, standard 600mm fixing points, and BESA compatibility ensure that the range will retrofit any installation and allow flexibility for new projects.

  • Optional modular microwave sensor, MODMWS
  • Optional modular emergency conversion kit, MODEMKIT
  • High efficiency
  • Colour adjustable, 3000K/ 4000K/ 5700K
  • Wattage adjustable, 17W/ 22W/ 26W/ 31W
  • Powered by Tridonic LED drivers
  • Rear and end conduit fixings
  • Standard 600mm centres and BESA box compatible
  • Hinged gear tray
  • Push-fit loop in-loop out terminal block
  • 17W - 2,600lm at 4000K
  • 22W - 3,300lm at 4000K
  • 26W - 3,900lm at 4000K
  • 31W - 4,500lm at 4000K
GB energy rating labelEU energy rating label
Unit Barcode 5061061272824
Inner Carton Quantity 1
Inner Carton Weight 1.4 Kg
Inner Carton Length 123 cm
Inner Carton Width 6.5 cm
Inner Carton Height 7.5 cm
Inner Carton Barcode 5061061272824
Outer Carton Quantity 10
Outer Carton Weight 15.00 Kg
Outer Carton Length 124 cm
Outer Carton Width 35 cm
Outer Carton Height 16.5 cm
Outer Carton Volume 0.071600 m3
Outer Carton Barcode 5061061272831
Length 1225 mm
Width 61 mm
Projection 70 mm
Construction Pressed steel
Construction 2 & polycarbonate
Finish White
IP Rating IP20
Class I
Primary Voltage 230V 50Hz
Diffuser Opal
Lamp Technology LED
Lamp Included Yes
Dimmable No
L70B50 100000
Energy Rating (Class) post 2021 SLR C
Beam Angle 120
CCT 3000/4000/5700 K
Light Colour CCT
Lumens 2500/2600/2600,3100/3300/3200,3600/3900/3700,4100/4500/4300 lm
Lumens (Light source only) 2700/3000/2800,3500/3900/3600,4100/4400/4200,4700/5200/4800 lm
Wattage 17/22/26/31
Efficacy (Light source) 173/172/169/163 lm/W
CRI >85
Driver Type Constant Current
Warranty 7
Line Drawing 1 Download
Commodity Code 9405423990
